pyvista.DataSetFilters.clip

DataSetFilters.clip(normal='x', origin=None, invert=True, value=0.0, inplace=False, return_clipped=False, progress_bar=False, crinkle=False)

Clip a dataset by a plane by specifying the origin and normal.

If no parameters are given the clip will occur in the center of that dataset.

Parameters:

normaltuple(float) or str, default: ‘x’

Length 3 tuple for the normal vector direction. Can also be specified as a string conventional direction such as 'x' for (1, 0, 0) or '-x' for (-1, 0, 0), etc.

originsequence[float], optional

The center (x, y, z) coordinate of the plane on which the clip occurs. The default is the center of the dataset.

invertbool, default: True

Flag on whether to flip/invert the clip.

valuefloat, default: 0.0

Set the clipping value along the normal direction.

inplacebool, default: False

Updates mesh in-place.

return_clippedbool, default: False

Return both unclipped and clipped parts of the dataset.

progress_barbool, default: False

Display a progress bar to indicate progress.

crinklebool, default: False

Crinkle the clip by extracting the entire cells along the clip. This adds the "cell_ids" array to the cell_data attribute that tracks the original cell IDs of the original dataset.

Returns:

pyvista.PolyData or tuple[pyvista.PolyData]

Clipped mesh when return_clipped=False, otherwise a tuple containing the unclipped and clipped datasets.

Examples

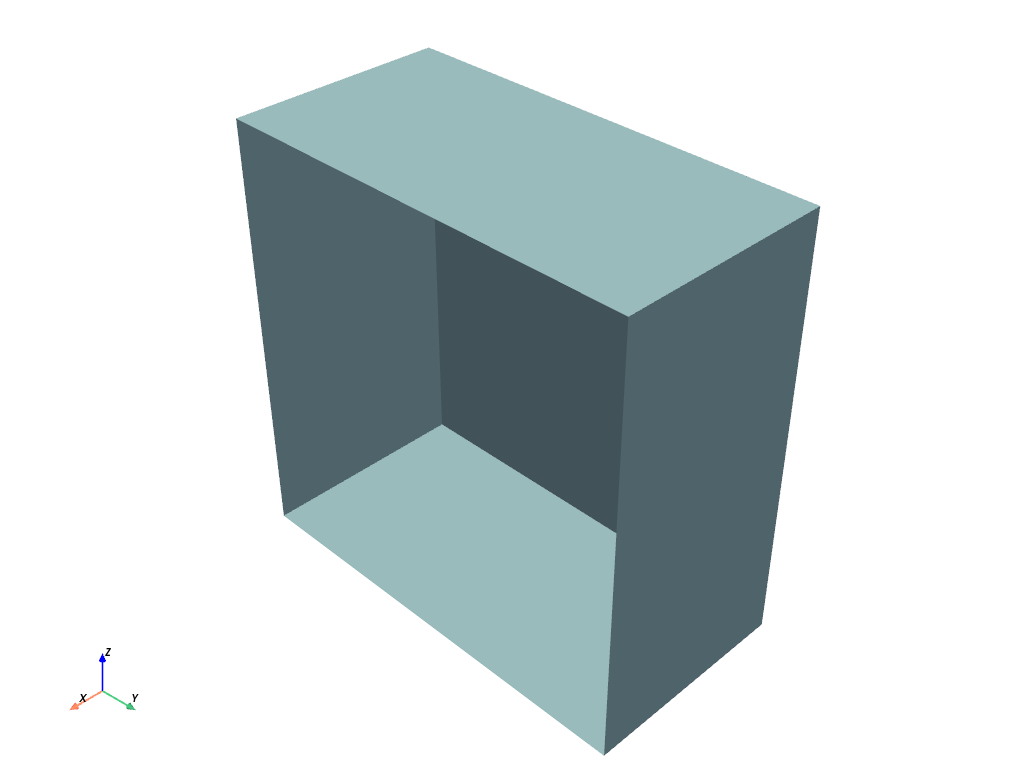

Clip a cube along the +X direction. triangulate is used as the cube is initially composed of quadrilateral faces and subdivide only works on triangles.

>>> import pyvista as pv
>>> cube = pv.Cube().triangulate().subdivide(3)
>>> clipped_cube = cube.clip()
>>> clipped_cube.plot()

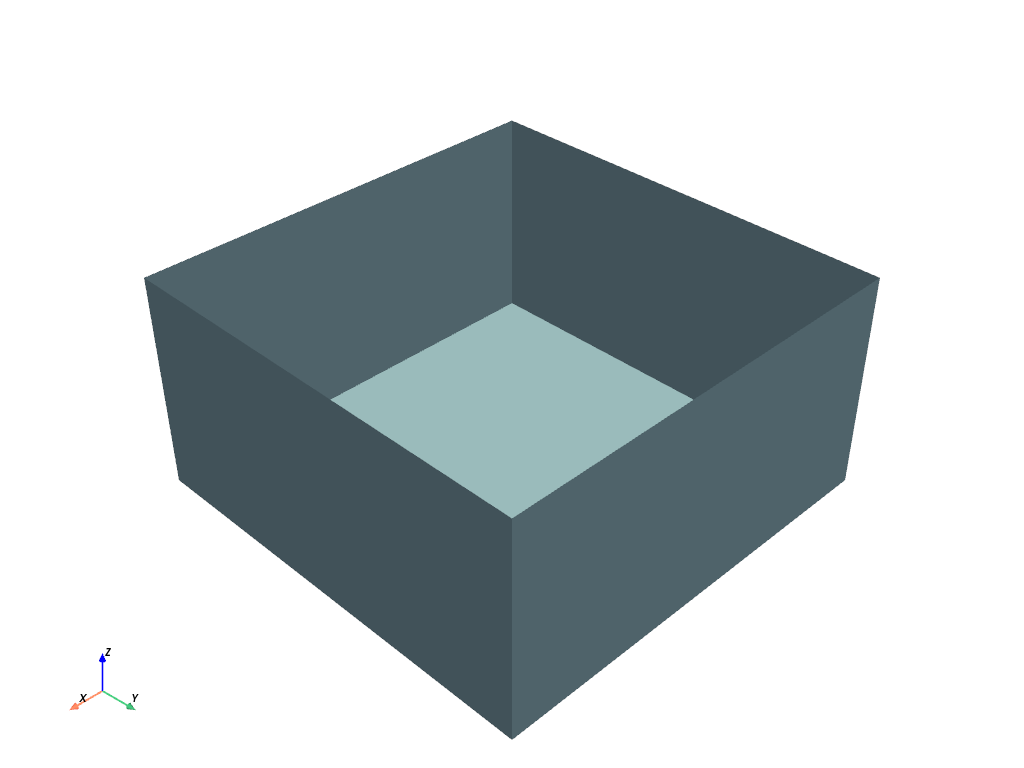

Clip a cube in the +Z direction. This leaves half a cube below the XY plane.

>>> import pyvista as pv
>>> cube = pv.Cube().triangulate().subdivide(3)
>>> clipped_cube = cube.clip('z')
>>> clipped_cube.plot()

See Clipping with a Surface for more examples using this filter.
